Type
DIGIC 8
-

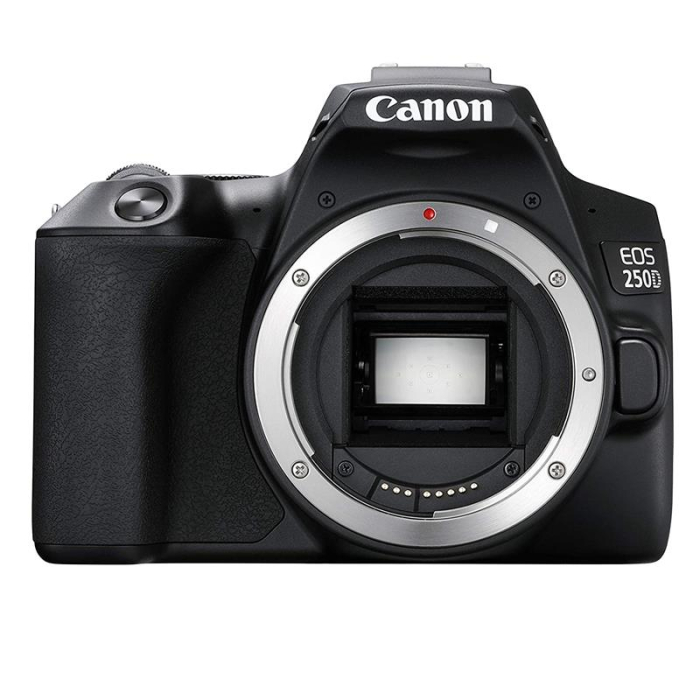

Lens Mount
EF and EF-S mount
-
Focal length
Approx. 1.6x the focal length of the lens
-
Image Stabilisation
Optical Image Stabilizer on compatible lenses
-
Type
Via optical viewfinder: TTL secondary image-forming phase-difference detection system with AF-dedicated sensor.
Via LiveView on LCD screen: Dual Pixel CMOS AF System. Phase detection pixels built onto imaging sensor1
-
AF System / Points
Via optical viewfinder: 9-point Center AF point is AF cross-type supporting f/5.6. Center AF point is vertical line-sensitive supporting f/2.8. Other AF points are vertical line-sensitive or horizontal line-sensitive AF supporting f/5.6. 2
Via LiveView on LCD screen: Maximum 143 AF points via camera automatic selection 3 Freely position 1 AF point/1 AF Zone max 3,975 points via manual selection 1
-
AF working range
Via optical viewfinder: EV -0.5 – 18 (center AF point)4 EV 0.5 – 18 (other AF points) 4
Via LiveView on LCD screen: EV -4 – 18 (f/1.2 at 23 °C & ISO 100) with One-Shot AF
-
AF Modes
AI Focus, One Shot, AI Servo (AI Servo II algorithm)
-
AF Point Selection
Via optical viewfinder:
Automatic selection: 9 point AF
Manual selection: Single point AF
-
Selected AF point display
Indicated by a transmissive LCD in viewfinder and Quick Control screen
-
AF Lock
Locked when shutter button is pressed half way in One-Shot AF mode or AF-ON Button is pressed.
-
AF Assist Beam
Emitted by optional dedicated Speedlite
-
Manual Focus
Selected on lens
-
Metering modes
Via optical viewfinder:
63-zone dual-layer metering sensor with Evaluative, partial, spot (centre only) and centre-weighted average available
Via LiveView on LCD screen:
(1) Evaluative metering (384 zones)
(2) Partial metering (approx. 5.5 % of LCD screen)
(3) Spot metering (approx. 3.7 % of LCD screen)
(4) Center-weighted average metering
-
Metering Range
Via optical viewfinder: EV 1 – 20 (at 23 °C with 50 mm f/1.4 lens ISO 100) Via LiveView on LCD screen: EV -2 – 20 (at 23 °C, ISO 100, evaluative metering)
-
AE Lock
Auto: In One-shot AF mode with evaluative metering exposure is locked when focus is achieved.
Manual: By AE Lock Button in creative zone modes.
-
Exposure Compensation
+/-5 EV in 1/3 or 1/2 stop increments (can be combined with AEB).
-
AEB
3 shots +/-2 EV 1/3 or 1/2 stop increments
-
ISO Sensitivity
Auto (100-25600), 100-25600 (in whole stop increments)
ISO can be expanded to H: 51200
During Movie shooting: Auto (100-12800), 100-12800 (in 1/3-stop or whole stop increments) ISO can be expanded to H: 25600. 4K Movie Max. 6400
-
Type
Electronically-controlled focal-plane shutter
-
Speed
30-1/4000 sec (1/2 or 1/3 stop increments), Bulb (Total shutter speed range. Available range varies by shooting mode)
-
Type
Automatic white balance with the imaging sensor
-
Settings
AWB (Ambience priority, White priority), Daylight, Shade, Cloudy, Tungsten light, White, Fluorescent light, Flash, Custom, Colour Temperature Setting. White balance compensation: 1. Blue/Amber bias +/-9 levels. 2. Magenta/ Green bias +/-9 levels
-
Custom White Balance
Yes, 1 setting can be registered
-
WB Bracketing
+/-3 levels in single level increments
3 bracketed images per shutter release.
Selectable Blue/Amber bias or Magenta/Green bias.
-
Type
Pentamirror
-
Coverage (Vertical/Horizontal)
Approx. 95 %
-
Magnification
Approx. 0.87x
-
Dioptre Correction
-3 to +1 m-1 (dioptre)
-
Focusing Screen
Fixed (Translucent LCD screen for information overlay)
-
Mirror
Quick-return half mirror (Transmission: reflection ratio of 40:60, no mirror cut-off with EF 600 mm f/4 IS USM or shorter)
-
Viewfinder Information
AF information: AF points, focus confirmation, AF area selection mode. Exposure information: Shutter speed, aperture value, ISO speed (always displayed), AE lock, exposure level/compensation, spot metering circle, exposure warning, AEB. Flash information: Flash ready, high-speed sync, FE lock, flash exposure compensation.
Image information: Card information, maximum burst (1 digit display), Highlight tone priority (D+). Composition information: Grid, Aspect Ratio. Other information: Warning icon.
-
Depth of field preview
Yes, with Depth of Field preview assigned to a button via Custom Function.
-
Eyepiece shutter
On strap
-
Type

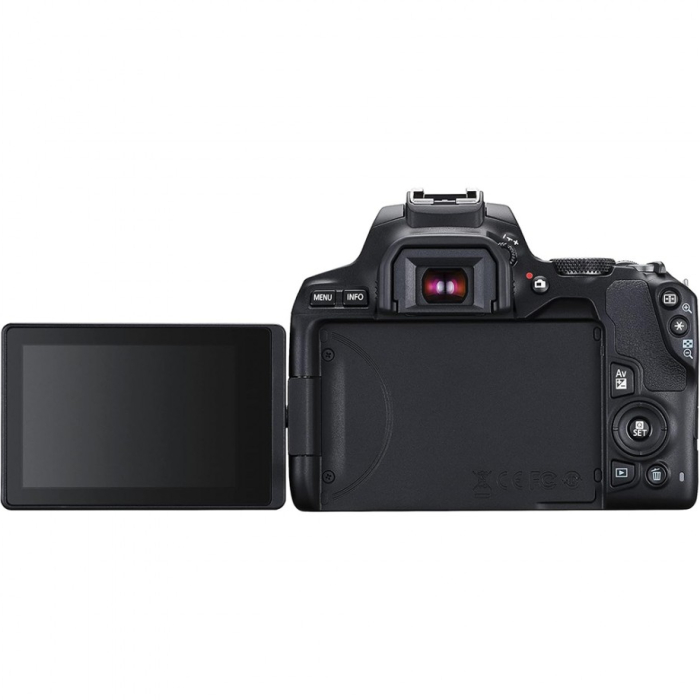

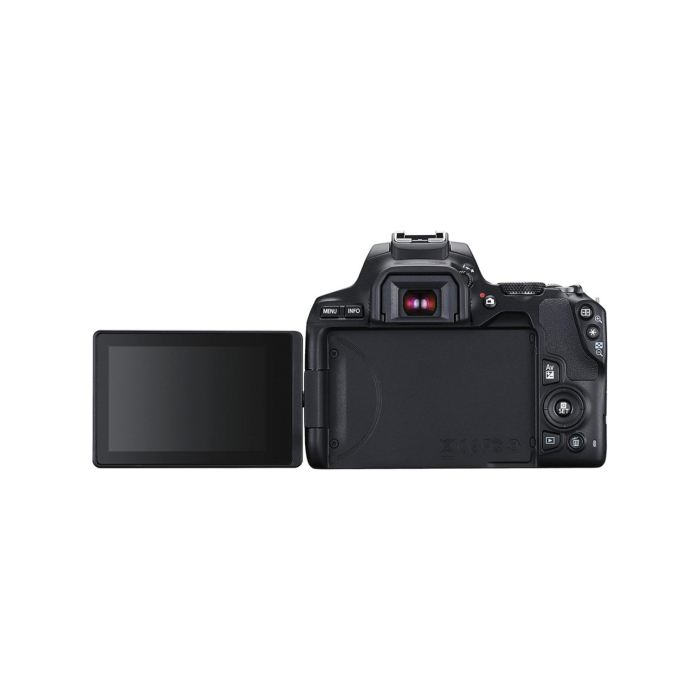

Vari-angle touchscreen 7.7 cm (3.0") 3:2 Clear View II TFT, approx. 1040 K sRGB dots
-
Coverage
Approx. 100%
-
Viewing Angle (horizontally/vertically)
Approx. 170°
-
Brightness Adjustment
Adjustable to one of seven levels
-
Display Options
(1) Quick Control Screen
(2) Camera settings
-
Modes
Scene Intelligent Auto (Stills and Movie), Creative Auto, SCN(Portrait, Landscape, Close-up, Sports, Group Photo, Night Portrait, Smooth Skin, Group Photo, Handheld Night Scene, HDR Backlight Control, Food, Kids, Candlelight), Creative filters, Program AE, Shutter priority AE, Aperture priority AE, Manual (Stills and Movie)
-
Picture Styles
Auto, Standard, Portrait, Landscape, Fine Detail, Neutral, Faithful, Monochrome, User Defined (x3)
-
Colour Space
sRGB and Adobe RGB
-
Image Processing
Highlight Tone Priority (3 settings) Auto Lighting Optimizer (4 settings) Long exposure noise reduction High ISO speed noise reduction (4 settings) Multi Shot Noise Reduction Auto Correction of Lens Peripheral illumination, Chromatic aberration correction, Distortion correction, Diffraction correction Digital Lens Optimizer Creative filters (Grainy B/W, Soft focus, Fish-eye effect, Water painting effect, Toy camera effect, Miniature effect, HDR art standard, HDR art vivid, HDR art bold, HDR art embossed)
Multi-exposure Resize, Crop (JPEG only)
-
Drive modes
Single, Continuous L, Continuous H, Self timer (2s+remote, 10s +remote)
-
Continuous Shooting
Max. Approx. 5 fps.
-
Still Image Type
JPEG: Fine, Normal (Exif 2.31 [Exif Print] compliant) / Design rule for Camera File system (2.0)
RAW: 14bit, Canon original RAW 3rd edition Digital Print Order Format [DPOF] Version 1.1 compliant
-
RAW+JPEG simultaneous recording
RAW, RAW + JPEG (any combination) possible.
-
Image Size
JPEG 3:2: (L) 6000 x 4000, (M) 3984 x 2656, (S1) 2976 x 1984, (S2) 2400x1600,
JPEG 4:3: (L) 5328x4000, (M) 3552x2664, (S1) 2656x1992, (S2) 2112x1600,
JPEG 16:9: (L) 6000x3368, (M) 3984x2240, (S1) 2976x1680, (S2) 2400x1344,
JPEG 1:1: (L) 4000x4000, (M) 2656x2656, (S1) 1984x1984, (S2) 1600x1600,
RAW: (RAW) 6000x4000
-
Movie Type
MP4 (Video: H.264 inter frame, Audio: AAC, recording level can be manually adjusted by user) MOV (Video: H.264 All-I Full HD, no sound) - time-lapse movie only
-
Movie Size
3840 x 2160 (23.98, 25 fps) inter-frame
1920 x 1080 (59.94, 50 fps) inter-frame
1920 x 1080 (29.97, 25 fps) inter-frame
1920 x 1080 (29.97, 25) lite inter-frame
1280 x 720 (59.94, 50 fps) inter-frame
-
Movie Length
Max duration 29min 59sec
-
Folders
New folders can be manually created and selected
-
File Numbering
(1) Consecutive numbering
(2) Auto reset
(3) Manual reset
-
Custom Functions
11 Custom Functions
-
Metadata Tag
User copyright information (can be set in camera)
Image rating (0-5 stars)
-
Intelligent Orientation Sensor
Yes
-
Playback zoom
1.5x - 10x
-
Display Formats
(1) Single image with information (2 levels)
(2) Single image
(3) 4-image index
(4) 9-image index
(5) 36-image index
(6) 100-image index
(7) Jump Display
-
Slide Show
Choose images with Image Search
Playback time: 1/2/3/5/10/20 seconds
Repeat: On/Off
Background music: On/Off
Transition effect: Off, Slide in 1, Slide in 2, Fade 1, Fade 2, Fade 3
-
Histogram
Brightness: Yes
RGB: Yes
-
Highlight Alert
Yes
-
Image Erase/Protection
Erase: Select image, select range, all images in folder, all images on a card, all found images (during image search)
Protection: Single image, select range, all images in folder, all images on a card, all found images (during image search)
-
Menu Categories
Menu interface adjustable by the user between standard and guided
(1) Shooting menu
(2) Playback menu
(3) Setup menu
(4) Display Options menu
(5) My Menu
-
Menu Languages
29 Languages
English, German, French, Dutch, Danish, Portuguese, Finnish, Italian, Norwegian, Swedish, Spanish, Greek, Russian, Polish, Czech, Hungarian, Romanian, Ukrainian, Turkish, Arabic, Thai, Simplified Chinese, Traditional Chinese, Korean, Japanese, Vietnamese, Hindi, Malay, Indonesian
-
Firmware Update
Update possible by the user.
-
Body Materials
Chassis: Aluminium alloy and polycarbonate resin with glass fibre
Exterior: Polycarbonate resin with glass fibre and special conductive fibre
Bảo hành: 6 Tháng
